0.6MPa PCB Punching Machine With Dual Vacuum Suction Cups Module

Factory Hot Manul PCB Cutter Mechanical Punching Machine Punch Press Machine

PCB Punching Machine Features:

1. High Efficiency. FPCs can be divided into 6 to 8 pieces in one minute.

2. The surface of the product is flat and uniform.

3. Low noise, no dust, thus reducing environment pollution.

4. Low Energy, the main power of consumption is compressed air.

5. Low labor intensity for employee.

6. Adopt the lower die automatic entry and exit slitting method, which is protected by both grating and safety door. The operator is very safe to operate it.

PCB Punching Machine Specification

1. PCB Punching Machine Exterior Sepecifications	Machine Name	PCB Punching Machine

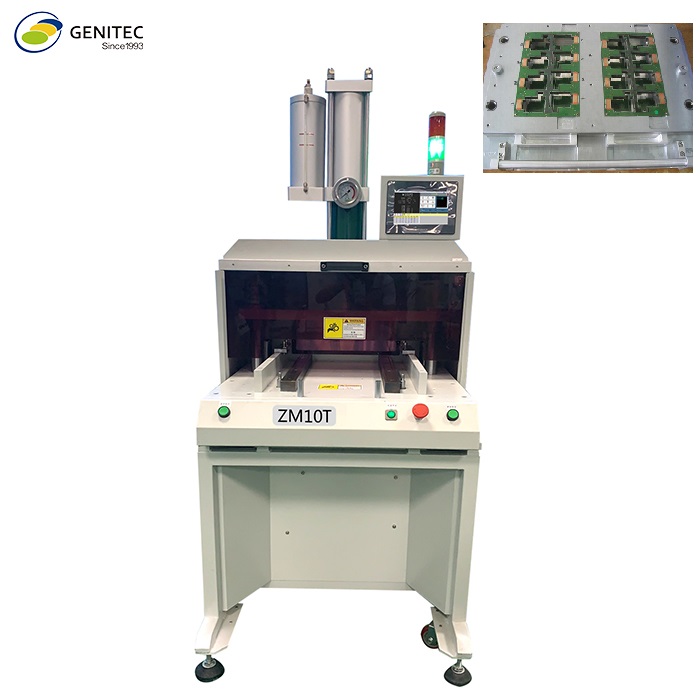

	Model	ZM10T
	Outsize	830*730*2100MM
	Shape	Vertical
	Weight	530KG
	Color	Computer White
2. PCB Punching Machine Supply Requirements	Power Supply	AC220V 200W
	Enviroment Required	Clean and dry environment ,Avoid moisture or high temperature environment
	Working Pressure/Pipe Dia.	>0.6MP /6mm
	Minimum distance of part from cutting position	≥＝0.5mm
	Max.Cutting Length	300*360mm / 300*360mm / 350*600mm(Can customized larger size)
	FPC Cutting Position	Don’t allow components to cross above the cutting position
	Position Hole Required	FPC has4 holes at least and extra one foolproof hole
	Max.height of the FPC Components	Obverse max.height is: 20mm front max.height is 35mm
3. PCB Punching Machine Software Part	PLC	Mitsubishi/Zhongyan PLC
	Paramenters Setting	Can set the punch cut times through touch screen,and the maintenance time of the cutter time etc.
	Storage Module	Can store 50 sets of programs
	Operating System	Chinese and English operation interface
	Touch Screen	WEINVIEW 7inch Touch Screen
	Fiber Optic Sensor	Daochuan Sensor

Genitec and Seprays are brands of Zhimao Automation Equipment Co., Ltd.
Zhimao Automation Equipment Co., Ltd. professionally provide customers with one-stop PCB depaneling solutions!

We produce most kinds of PCB separators. Including PCB router, laser PCB depaneling machine, V-cut, FPC/PCB punching machine,etc.

• Genitec was founded in Taiwan in 1993, and set up a subsidiary in Dongguan in 2002.Yes,that is Dongguan Zhimao Automation Equipment Co., Ltd.
• In 2003, we set up our factory in Zhejiang Province.And set up subsidiary in Suzhou in 2020.
• Genitec & Seprays: we have been specializing in PCBA separator's R&D and manufacturing for 30 years.

We gain a high reputation with high quality and service in SMT Industry. Our products sell well all over the world.

• We won the quality certification of ISO9001 in 2001, the Ministry of Economic Affairs' Small and Medium-sized Enterprise Division selected as an innovative R&D outstanding small and medium-sized enterprise.
• And won the Taichung County Government Golden Hand Award;
• We have CE certification, dozens of hardware and software patent certificates, and won a high-tech enterprise in 2020.
• We have two modern factories for over 22,000 square meters.
• We have service bases in 9 cities in China and 28 countries and regions around the world in order to provide customers with timely services and needs.
