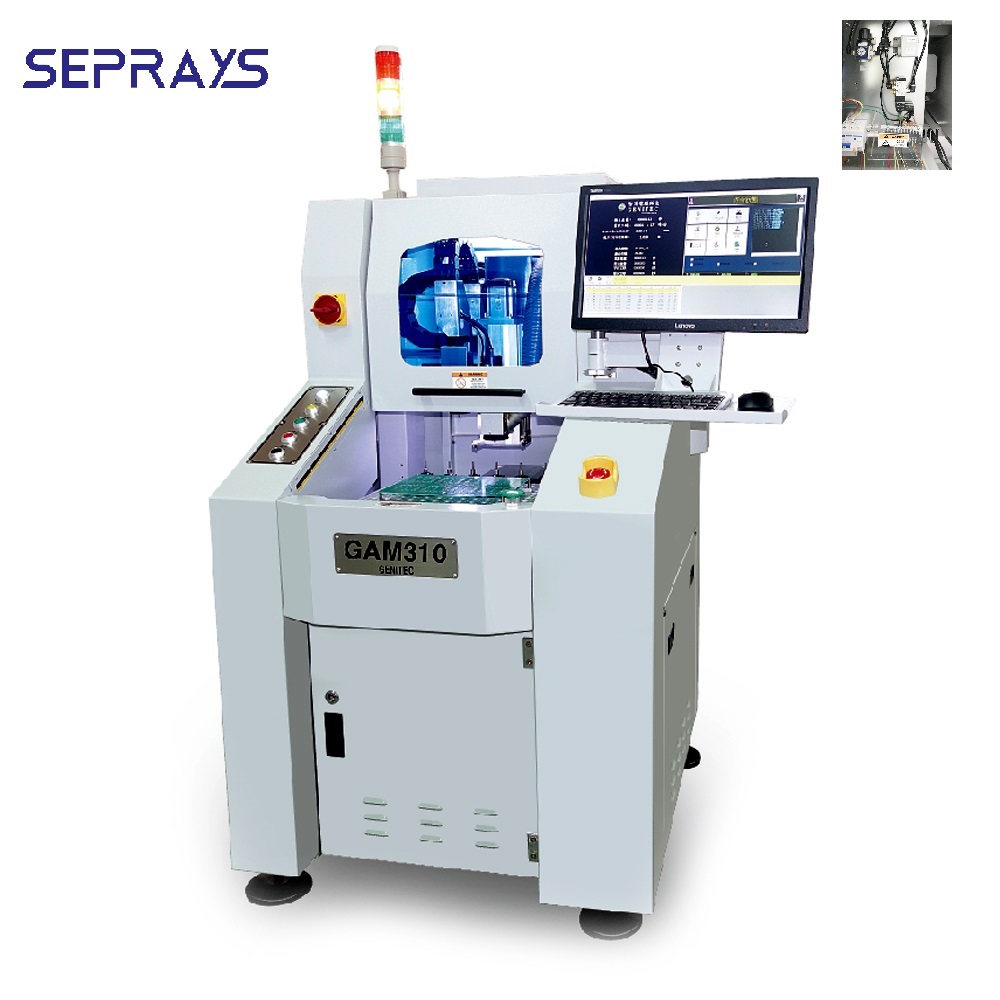

600x500mm Circuit Board Cutting Machine

Vison-Aided Position Calibration 60000rpm Spindle Speed PCB Splitter Machine

Descriptions:
Equipped with high-speed CCD vision alignment system in all series of products to enhance the precision in cutting and efficiency in operation.
Use high-speed spindle with small cutting stress to precisely cut PCB of any shape.
Provide dual worktables.While one is used for cutting,the other can be used for loading to enhance efficiency of production.
Patented dust collector with low noise and high efficieny.Easy to clean and maintain.
Windows OS and window-based interface panel.Safe,stable,easy to learn and operate.

Operation Panel
Operation interface is clear, friendly, and simple. Easy to learn and start quickly.
Functional items are clear and well categorized. Very easy to set the parameters for milling tool and fixture.
Provide four levels of autorization control according to user's job rank.
The "History Window" can display the historical records of operation.

Spindle
High-speed precision spindle (60000RPM).
Low stress in cutting contact. Generate smooth edge for PCB.
Automatic compensation function in Z-axis to adjust the cutting depth of milling tool and prolong the life-cycle of the tool.
Mechanism of detecting broken milling tool is available. ( optional )

The Whole PCB Scanning Function For Editing the Cutter's Routing Path
The function of scanning the whole PCB allows the user to facilitate correcting and editing the cutter's routing path rapidly.

Specification

Product Application:
1. Equipped with high efficient vision-aided position alignment system with high-speed CCD camera in all product series .Especially desinged for high-precision and high-production PCB cutting process.
2. Suitable for de-paneling small-sized PCB for cell phone ,digital camera,GPS device,and PDA ,etc.
3. Can choose either standard fixture or customized fixture for PCB cutting to help increasing the production volume.
4. Provide dual worktables so that placing and cutting PCB can be performed simultane-ously to minmize the waiting time.

Genitec and Seprays are brands of Zhimao Automation Equipment Co., Ltd.
Zhimao Automation Equipment Co., Ltd. professionally provide customers with one-stop PCB depaneling solutions!

We produce most kinds of PCB separators. Including PCB router, laser PCB depaneling machine, V-cut, FPC/PCB punching machine,etc.

• Genitec was founded in Taiwan in 1993, and set up a subsidiary in Dongguan in 2002.Yes,that is Dongguan Zhimao Automation Equipment Co., Ltd.
• In 2003, we set up our factory in Zhejiang Province.And set up subsidiary in Suzhou in 2020.
• Genitec & Seprays: we have been specializing in PCBA separator's R&D and manufacturing for 30 years.

We gain a high reputation with high quality and service in SMT Industry. Our products sell well all over the world.

• We won the quality certification of ISO9001 in 2001, the Ministry of Economic Affairs' Small and Medium-sized Enterprise Division selected as an innovative R&D outstanding small and medium-sized enterprise.
• And won the Taichung County Government Golden Hand Award;
• We have CE certification, dozens of hardware and software patent certificates, and won a high-tech enterprise in 2020.
• We have two modern factories for over 22,000 square meters.
• We have service bases in 9 cities in China and 28 countries and regions around the world in order to provide customers with timely services and needs.
