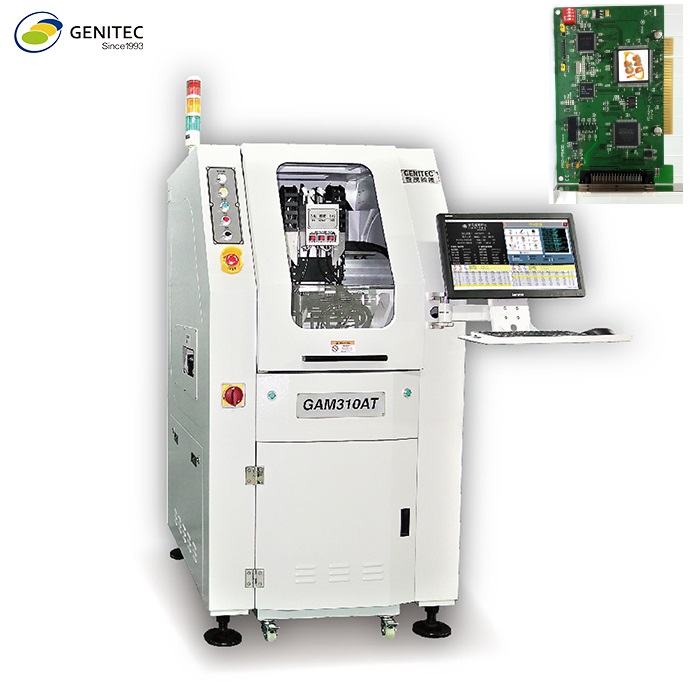

Auto Tool Change PCB Depanelizer With Anti Static Spindle

In-line Automatic PCB Depaneling Router Machine PCB Depanelization

PCB Depanelizer​ Features

1. Ln-line Automatic PCB Separator - Operation panel

2. Dual worktables are for placing and cutting at one time for enhancing efficiency.

3. Vision camera contains the function of focus adjusting automatically.

4. High speed spindle obtains low stress,precision quality and auto tool change module for enhancing auto production.

5. Dust collector combine alerting function is for ensuring clean efficiency.

6. MES central control system's linking function for offering management system to integrate data and monitor to see the status.

PCB Depanelizer​ Appliance

1. In-line automatic PCB separator can load,cut ,and un-load PCBs automatically to meet the needs of automatic factory.

2. Suitable for cutting small-sized PCBA panel used in cell phone,digital camera ,and GPS device.

Larger cutting size is suitable for cutting big sized PCBA panel used in TV,PC host,work station,sever etc.

3. Different options of unloading PCBs solutions,Achieve full automation and save labor cost.

4. The valid cutting size of 150*150mm for cutting mobile PCB and smaller PCB.

Operation panel

User-friendly interface makes easy to set parameters.

Categorizes function items clearly to setting parameters of milling tool and fixture easily.

Provide 4 levels authorization according user's job limit to control it.

The "History Windows"can search to show operation records.

Routing Module

Router bit can be using in different sections for extending cutting distance.

Auto to change router bit after the accumulative cutting distance reaching to setting calue.

Enable detecting of broken/dropped/reversed tool for auto tool-change.

The whole series In-line Automatic PCB Separator’s configuration.

1. Auto tool-change module.

2. Provide function of the whole PCB scanning for editing the cutter’s routing path.

3. The collection of MES production data.

The method of anti-static

1. The loading/unloading all uses anti-static conveying belt.

2. Anti-static suction cups and tube.

3. Anti-static spindle (option).

PCB Depanelizer​ Option items

1. Fixed bar code Reader

2. The height checking module in laser

3. Off-line programming
